Product Description

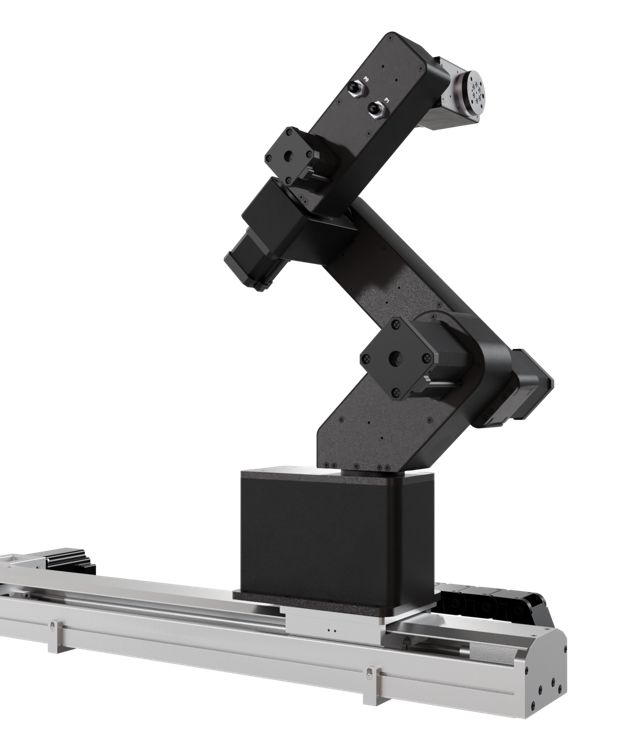

This kit contains a linear rail with a closed-loop motor and driver that is fully synchronized with the robot joints. The rail extends the horizontal reach of the robot and provides a sturdy, fast, smooth, and accurate linear motion platform. The package is robot-ready and comes with all the required components.

Main Features

  • Lightweight And Compact Linear Rail With 1-Meter Travel.

  • Quick Setup And Flexible Mounting Options.

  • Strong Belt-Driven Mechanism For Smooth, Fast, And Accurate Motion.

  • Comes With A Drag Chain Cable Carrier For Cable Management.

  • Fully Coordinated And Synced With Other Axes Of The Robot.

  • Connects Directly To The Robot Controller And Seamless Integration Via Dorna Lab And The Python API.

Ideal For
  • Assembly line
  • Creative production
  • Lab automation
  • Fast pick and place

product specifications

General specs
  • overall length
    1140 mm
  • overall width
    150 mm
  • overall height
    80 mm
  • maximum travel
    900 mm
  • maximum speed
    1200 mm / s
  • accuracy
    0.05 mm
  • pitch size
    75 mm / turn
  • homing
    automatic

Specs

General specs
  • overall length
    1140 mm
  • overall width
    150 mm
  • overall height
    80 mm
  • maximum travel
    900 mm
  • maximum speed
    1200 mm / s
  • accuracy
    0.05 mm
  • pitch size
    75 mm / turn
  • homing
    automatic

Resources

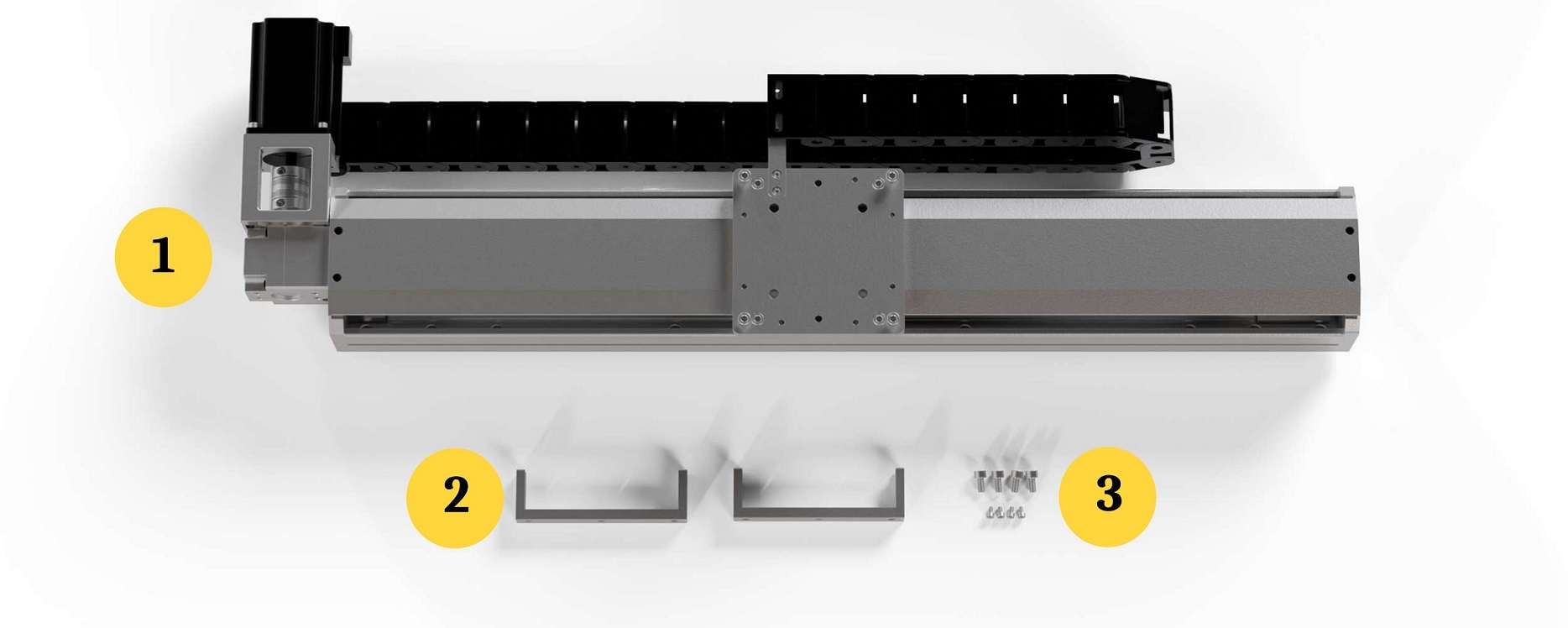

Package Content

Accessories
  • 1. rail
  • 3. mounting screws
  • 2.mounting brackets
Dorna 2 Robot

Quickstart

To get started with the rail kit, begin from here and learn how to get the rail up and running.
