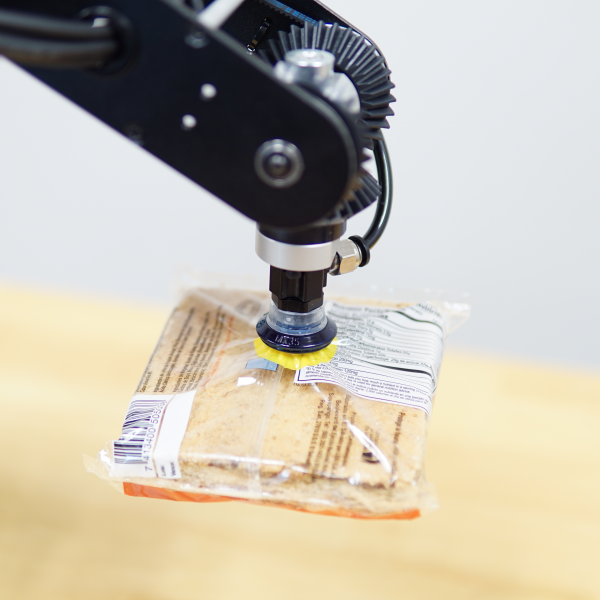

Dorna Suction Gripper uses Piab MX series suction cups and provides a high vacuum grip on objects of different shapes and surface materials. The kit is a great solution for pick and place of irregular objects in warehouses, e-commerce, recycling, or packaging applications. With quick assembly and easy programming through Dorna Lab or Python API, you can start picking objects in no time.
Suction Gripper Kit
$490.00
Description
Main Features
- The suction gripper kit includes all items to operate the gripper excluding the air compressor.
- The suction kit includes an MX series suction cup from Piab with outstanding capabilities for picking various objects of different materials.
- Multipurpose gripper, exceptional vacuum sealing, an ideal choice for logistics, warehousing, e-commerce, and re-cycling applications.
- Quick setup, and easy control using I/O commands of Dorna 2 robot via Dorna Lab or Dorna Python API.
Technical Data
| vertical lift @ 3 psi | 9.4 N |
|---|---|
| vertical lift @ 6 psi | 15.0 N |
| vertical lift @ 9 psi | 17 N |
| parallel force @ 3 psi | 6.6 N |
| parallel force @ 6 psi | 10.5 N |
| parallel force @ 9 psi | 11.9 N |
| suction cup size | 35 mm |
| max vertical stroke | 7.6 mm |
| temp range | 10 °C – 50 °C |
| fitting | G 1/8″ male thread |
| vacuum level | 3 psi – 9 psi |
| material | Polyurethane, PUR |

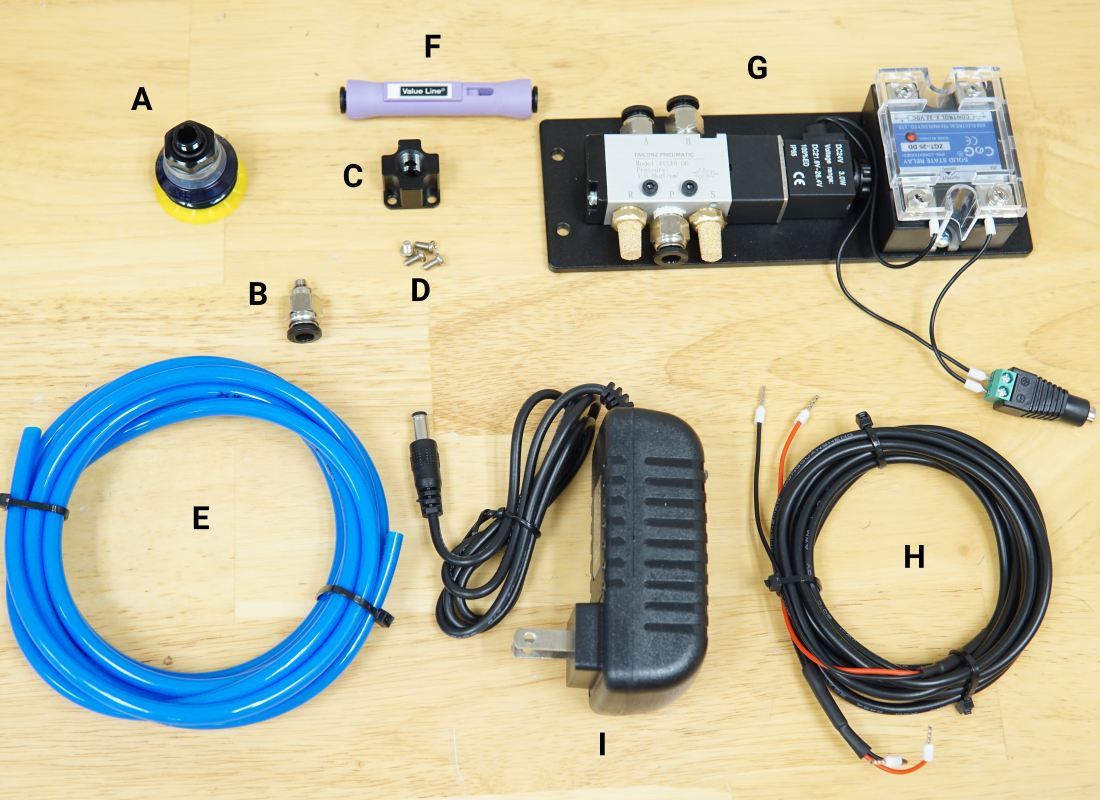

Package Content
- A : suction cup
- B : fitting
- C : toolhead adapter
- D : mounting screws
- E : pipe
- F : vacuum ejector
- G : switch and solenoid
- H : I/O cable
- I : solenoid power supply
Technical Drawings
CAD Files
Additional information
| Weight | 2 lbs |
|---|---|
| Dimensions | 8 × 8 × 4 in |
